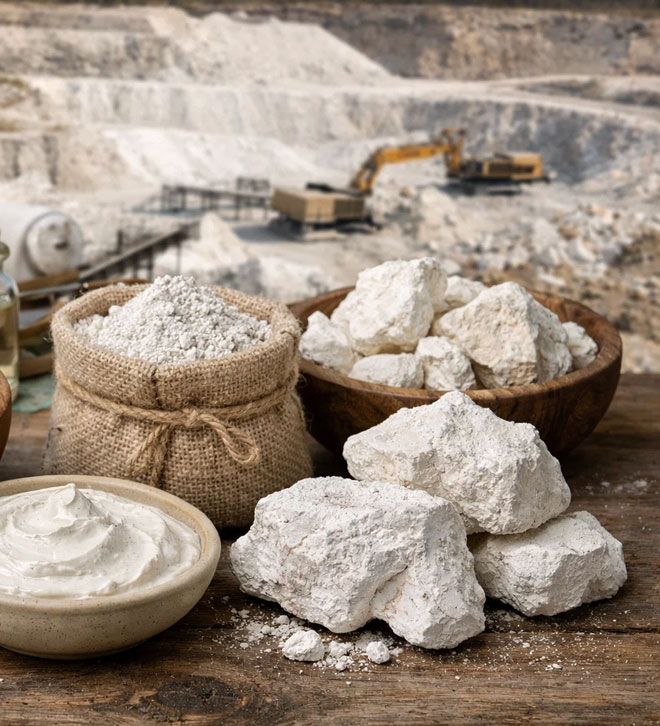

Kaolin Clay
Product Description
Kaolin Clay is a naturally occurring mineral primarily composed of kaolinite. It is processed through controlled mining, beneficiation, drying, grinding and classification to achieve consistent particle size, brightness and chemical properties.
Our Kaolin Clay is suitable for various industrial applications including ceramics, sanitaryware, paints & coatings, paper, rubber, plastics, adhesives, construction materials and other industrial formulations.
| Product Name | Kaolin Clay |
|---|---|
| Other Name | China Clay |
| Chemical Name | Hydrated Aluminium Silicate |
| Chemical Formula | Al2Si2O5(OH)4 |
| CAS No. | 1332-58-7 |
| HS Code | 2507 |
| Origin | India |
| Appearance | Fine White / Off-White Powder |
Available Grades
Ceramic Grade Kaolin Clay
Sanitaryware Grade
Paint & Coating Grade
Paper Grade
Rubber Grade
Plastic Grade
Filler Grade
Industrial Grade
Applications
Ceramics & Sanitaryware
Used as an important raw material for ceramic bodies, tiles, tableware and sanitaryware.
Paints & Coatings
Used as an extender and functional filler to improve opacity, consistency, smoothness and coating properties.
Paper Industry
Used as a filler and coating mineral to improve surface properties, printability and appearance.
Rubber Industry
Used as a reinforcing and functional filler in various rubber compounds.
Plastics
Used as a mineral filler to improve dimensional stability and other physical properties.
Construction Materials
Suitable for selected cementitious products, putty, adhesives and other construction formulations.
Key Features
- High purity
- Good whiteness
- Fine particle size
- Consistent quality
- Controlled moisture
- Good dispersion properties
- Suitable for multiple industrial applications
- Customized grades available
- Export-quality packaging available
Packaging
Available in:
- 25 kg PP/HDPE Bags
- 50 kg PP/HDPE Bags
- 500 kg Jumbo Bags
- 1,000 kg Jumbo Bags
- Customized export packaging as per buyer requirements
Technical Specifications
| Parameter | KN90 | KN92 | KN93 | KND | KN94 | KN95 | KM94 | KM95 | KM96 |
|---|---|---|---|---|---|---|---|---|---|
| SiO2 | 49-50 | 48-49 | 48-49 | 49-51 | 47-48 | 47-48 | 48-50 | 47-48 | 47-48 |
| Al2O3 | 36 | 36 | 36 | 32-35 | 36 | 36 | 36-37 | 36-37 | 36-37 |
| TiO2 | 0.8-1 | 0.8-1 | 0.8-1 | 0.8-1 | 0.8-1 | 0.8-1 | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 |
| Fe2O3 | 0.8-1 | 0.7-0.9 | 0.5-0.8 | 0.5-0.8 | 0.3-0.4 | 0.2-0.3 | 0.3-0.5 | 0.3-0.4 | 0.3-0.4 |
| MgO | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 |
| CaO | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 |
| Na2O | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.1-0.2 | 0.1-0.2 |
| K2O | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 | 0.1-0.2 | 0.08-0.09 | 0.08-0.09 | 0.08-0.09 | 0.08-0.09 | 0.08-0.09 |
| LOI | 12-14 | 12-14 | 12-14 | 12-14 | 12-14 | 12-14 | 12-14 | 12-14 | 12-14 |
| WOP | 34-36 | 34-36 | 35-36 | 33-35 | 35-36 | 35-36 | 35-38 | 35-38 | 35-38 |
| Water Abs. | 20-22 | 20-22 | 20-22 | 20-22 | 20-22 | 20-22 | 20-22 | 20-22 | 20-22 |
| Whiteness | 82-83 | 84-85 | 85-86 | 85-86 | 87-88 | 88-90 | 87-88 | 87-88 | 88-90 |
| L Value | 90-91 | 92+ | 93-94 | 92-93 | 94-94.5 | 95 | 94+ | 95+ | 96 |
| A Value | 1.3 | 1.2 | 1.2 | 1.2 | 0.5 | 0.4 | 0.5-0.6 | 0.2-0.3 | 0.2-0.3 |
| B Value | 3-3.5 | 3-3.5 | 2.5-3 | 3.5-4 | 2.5-3 | 2.5-2.7 | 2.5-3 | 2.5-3 | 2.5-2.8 |
| Moisture | 7-9 | 7-9 | 7-9 | 7-9 | 7-9 | 7-9 | 7-9 | 7-9 | 7-9 |
Applications We Provide
Paper
Paint
Rubber
Plastic
Ink
Polymer
Fertilizers
Ultramarine Blue
Fiber Glass
Cosmetics
Soap And Detergent
Cement
Wire And Cable
Ceramics
